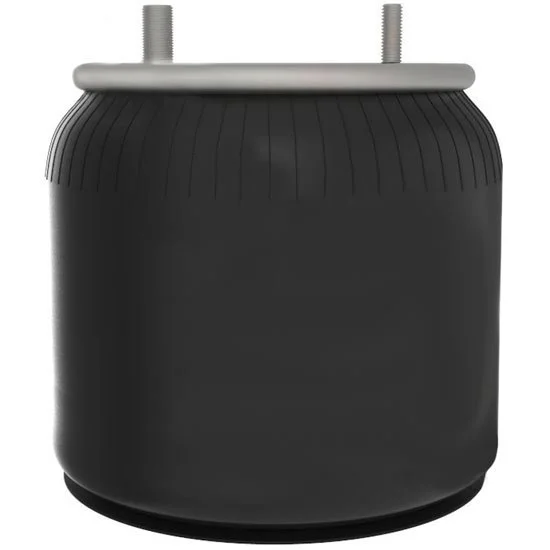

BESTfit Air Spring Rolling Lobe W/ Plastic Base- Replaces W01-3358-9082 For Trailer Suspensions

CA$247.49
19-05100010 * High Quality Air Spring * Rolling Lobe Type * 5500 Load At 80 PSI * 7000 Load At 100 PSI * 70 CPM Natural Frequency * Plastic Bottom Plate * With Bumper * Dimensions: - 13.50 Inch Design Height - 7.90 Inch Minimum Height - 21.50 Inch Maximum Height - 12.60 Inch Maximum Diameter * Top Plate: - (2) Stud Holes - 9.00 Inch Diameter - 5.50 Inch Center To Center Diameter * Bottom Plate: - (4) Stud Hole - 10.28 Inch Diameter - 7.87 Inch Center To Center Diameter * Sold Individually * Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase *** High Quality Aftermarket Replacement Part (Not OEM)***** Replaces OE Numbers W01-3358-9082 W013589082 1R12092 1R12-092 S11651 S12514007 S2066 S365147 H963001 517096C91 517559C9 57QL310 90557027 90557033 1288201 AS0011 64269 ** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order ** * Please Verify Mounting Hole Pattern, Some Year Models Can Have Multiple Offerings.
