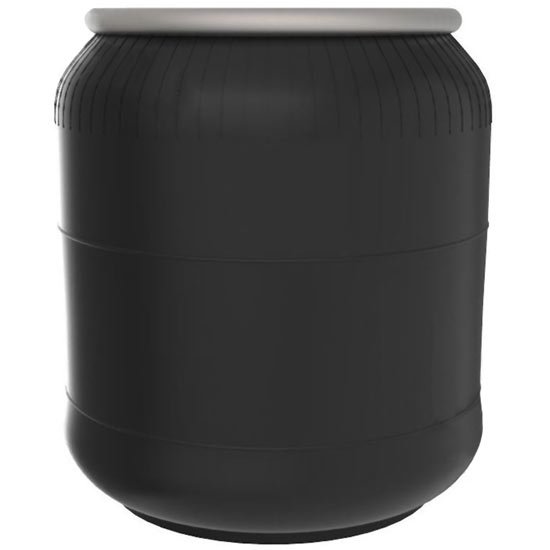

BESTfit Air Spring Replaces C81-1013 For Peterbilt New Low Spring

01-051032K01 * High Quality Air Spring * Plastic Base * Rolling Lobe Style * Load (Lbs.) At 80 PSI 5640 * Load (Lbs.) At 100 PSI 7070 * Natural Freq. (Cpm) 65 * Design Height Inch 16 * Bottom Plate Type Steel * Top Plate Hole/Stud Qty 2 * Top Plate Diameter (A) 9.00 * Top Plate Center To Center Diameter (B) 6.20 * Bottom Plate Hole/Stud Qty 1 * Bottom Plate Diameter (C) 7.88 * Bottom Plate Center To Center Diameter (D) 2.25 * Bottom Plate Alignment Parallel * Without Bumper * Bracket Not Included * Min. Height 7.8 Inch * Max. Height 25.2 Inch * Max. Diameter 12.6 Inch * Sold Individually * Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase *** High Quality Aftermarket Replacement Part (Not OEM) *** *** Replaces OE Number(S) 03-08716, 03-07887, C81-1013
