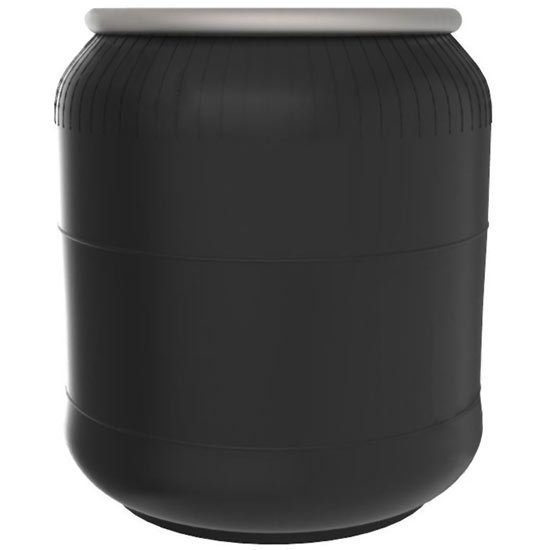

BESTfit Air Spring Replaces 8864, 1R12-1097, 66666, AB1DK23L-8864 For Kenworth AG400L Suspension

CA$290.99
02-051032K01 * High Quality Air Spring * Rolling Lobe Type * 5600 Lb Load At 80 PSI * 7100 Lb Load At 100 PSI * 65 CPM Natural Frequency * Without Bumper * Bracket Not Included * Body Dimensions: - 16 Inch Design Height - 7.8 Inch Minimum Height - 25.2 Inch Maximum Height - 12.6 Inch Maximum Diameter * Top Plate: - (3) Holes/Studs, (2) At 3/8”-16 UNC, (1) At 1/2”-14 NPT - 8.94 Inch Outer Diameter - 6.20 Inch Center To Center * Bottom Plate: - Made Of Plastic - (1) Bottom Plate Hole/Stud, 1/2”-13 UNC - 8.07 Inch Outer Diameter * Sold As Kit * Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase *** High Quality Aftermarket Replacement Part (Not OEM) *** *** Replaces OE Number(S) 8864, 1R12-1097, 66666, AB1DK23L-8864
