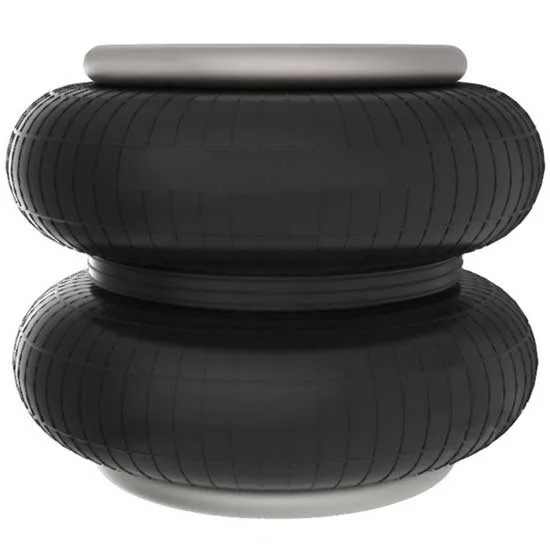

BESTfit Air Spring Double Convoluted Air Bag Replaces W013586902 For Hendrickson Turner Suspensions

CA$199.49
19-05100007 * High Quality Air Spring * Double Convoluted * 2560 Load At 80 PSI * 3200 Load At 100 PSI * 108 CPM Natural Frequency * With Bumper * Dimensions: - 8.00 Inch Design Height - 3.70 Inch Minimum Height - 10.50 Inch Maximum Height - 9.80 Inch Maximum Diameter * Top Plate: - (3) Stud Holes - 6.31 Inch Diameter - 3.50 Inch Center To Center Diameter * Bottom Plate: - (2) Stud Hole - 6.31 Inch Diameter - 3.50 Inch Center To Center Diameter * Sold Individually * Warranty On Air Spring Double Convoluteds Against Defects In Workmanship & Material From Date Of Purchase *** High Quality Aftermarket Replacement Part (Not OEM) *** * Replaces OE Number(s) W01-358-6902;FD200-19310;FD 200-19 310;FD20019310;64509;2B9201;2B9-201;2B9239;2B9-239;S2630;554784C1;57006902;G2296902500;1003586902C;AS0002 ** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order ** * Please Verify Mounting Hole Pattern, Some Year Models Can Have Multiple Offerings.
