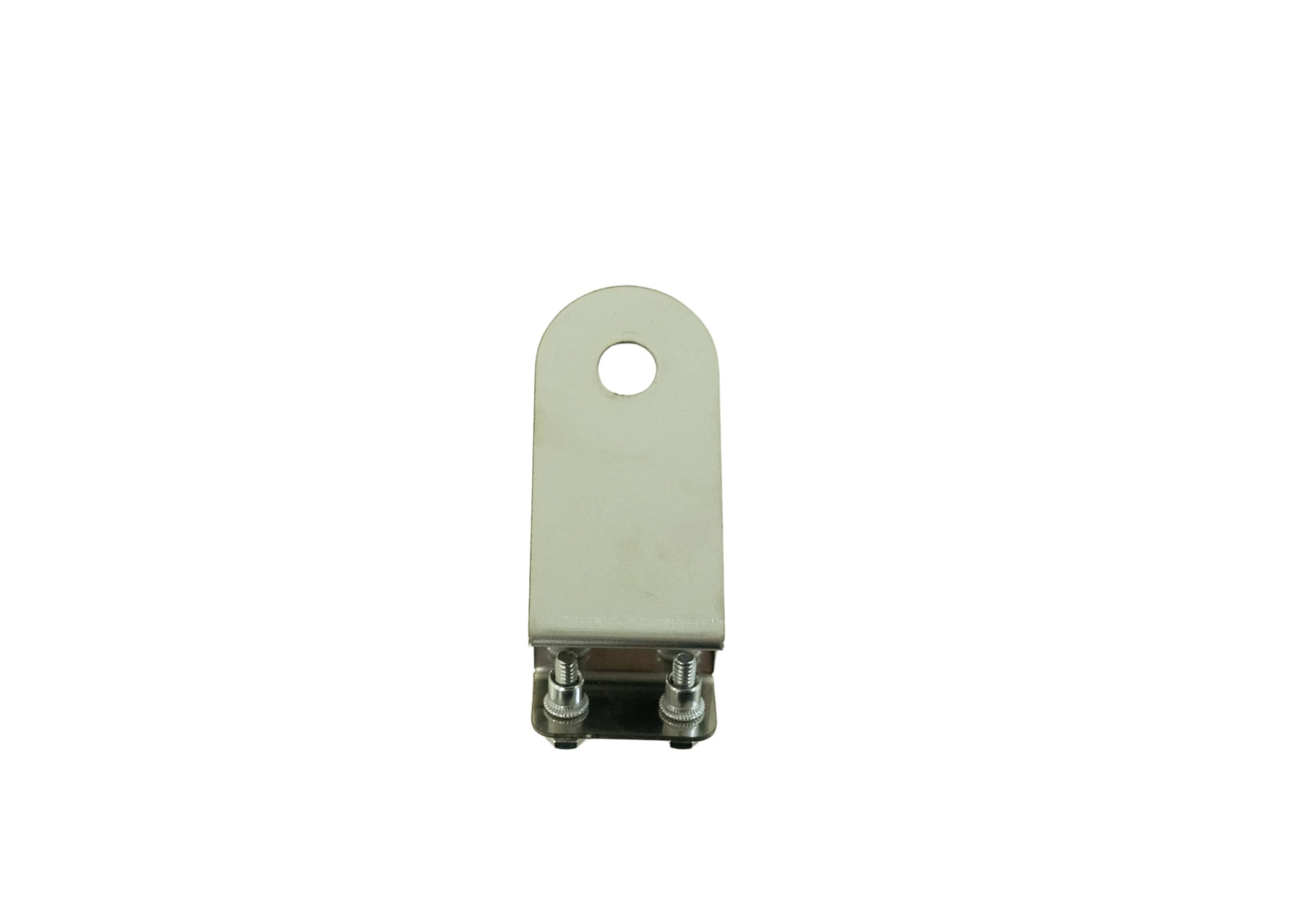

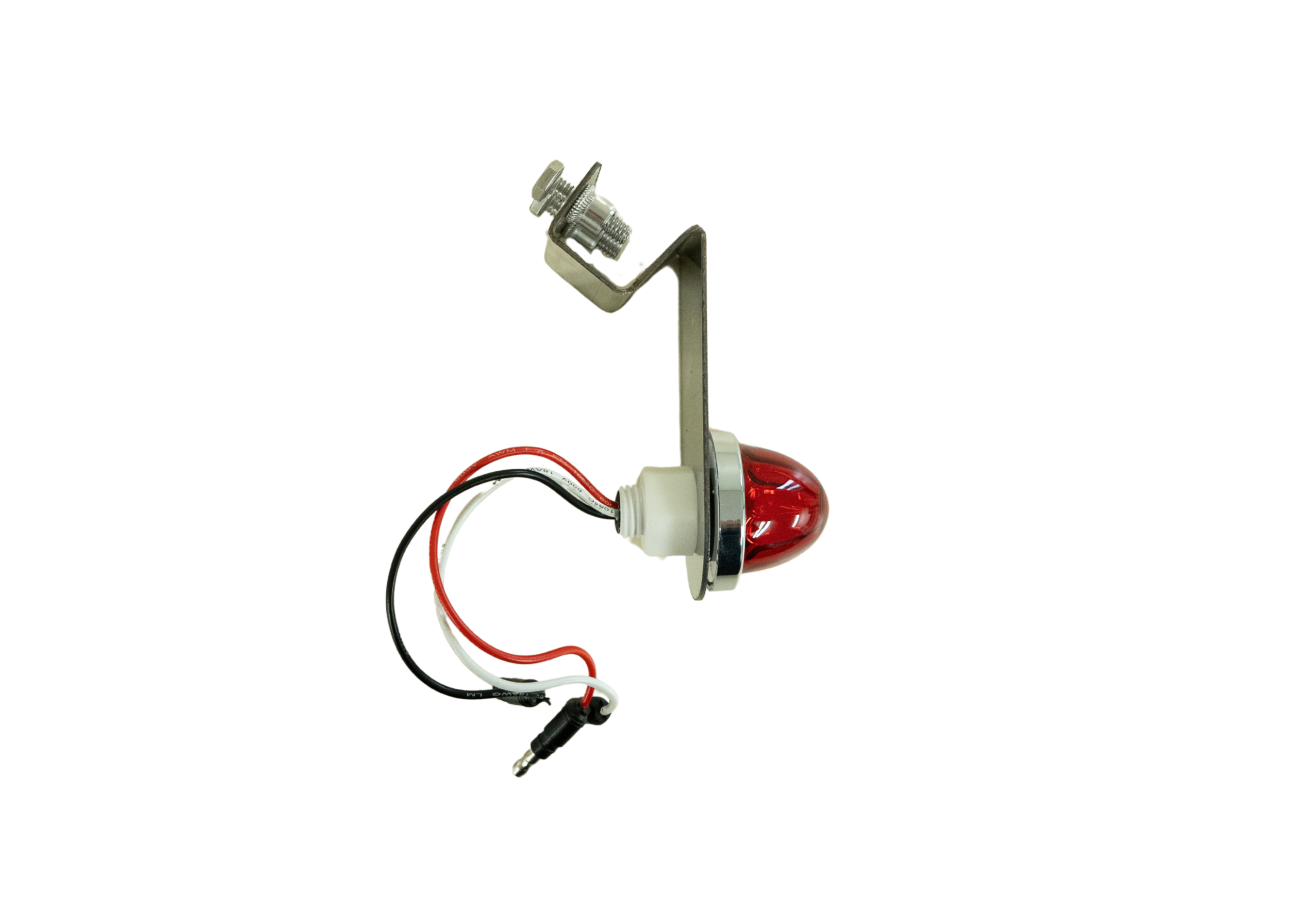

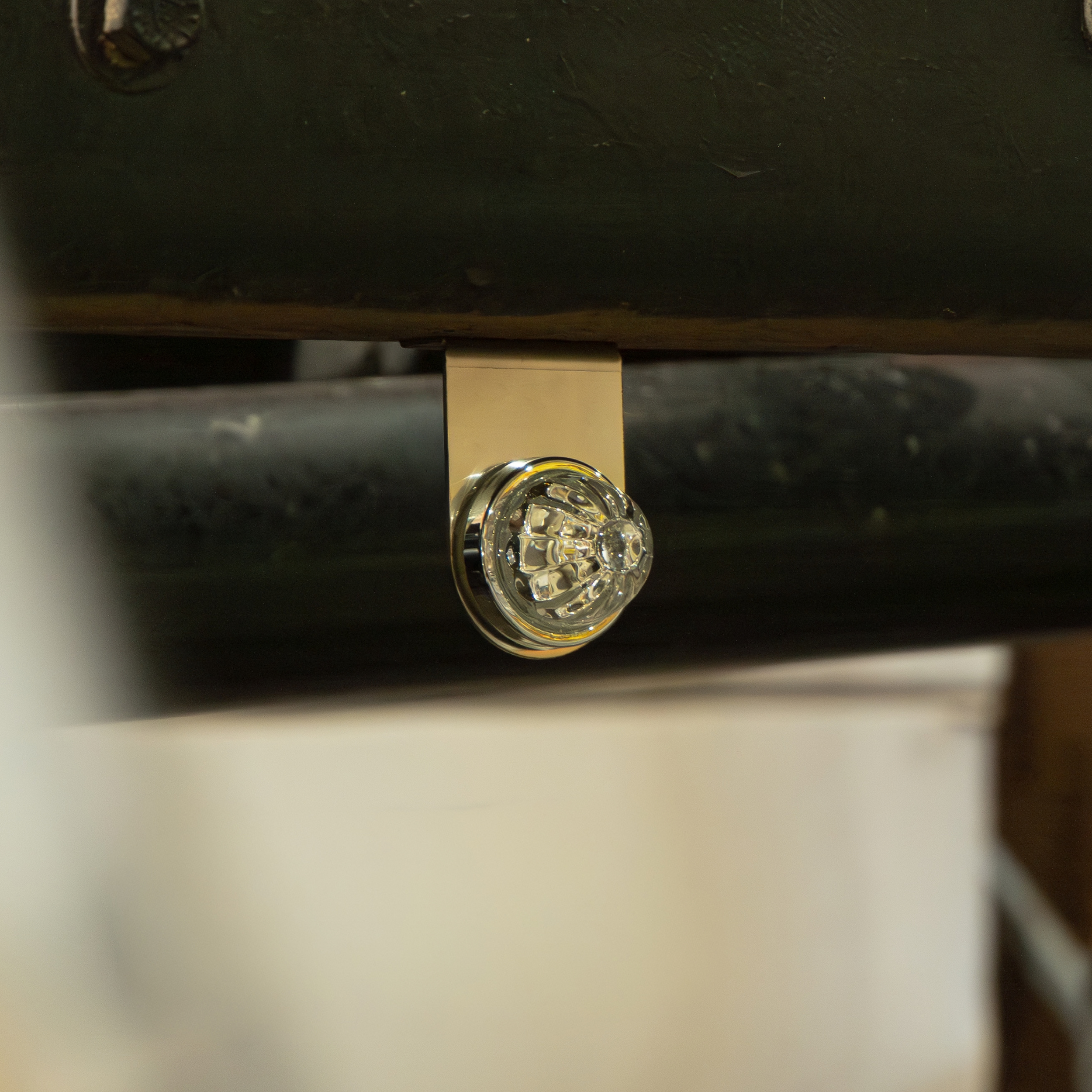

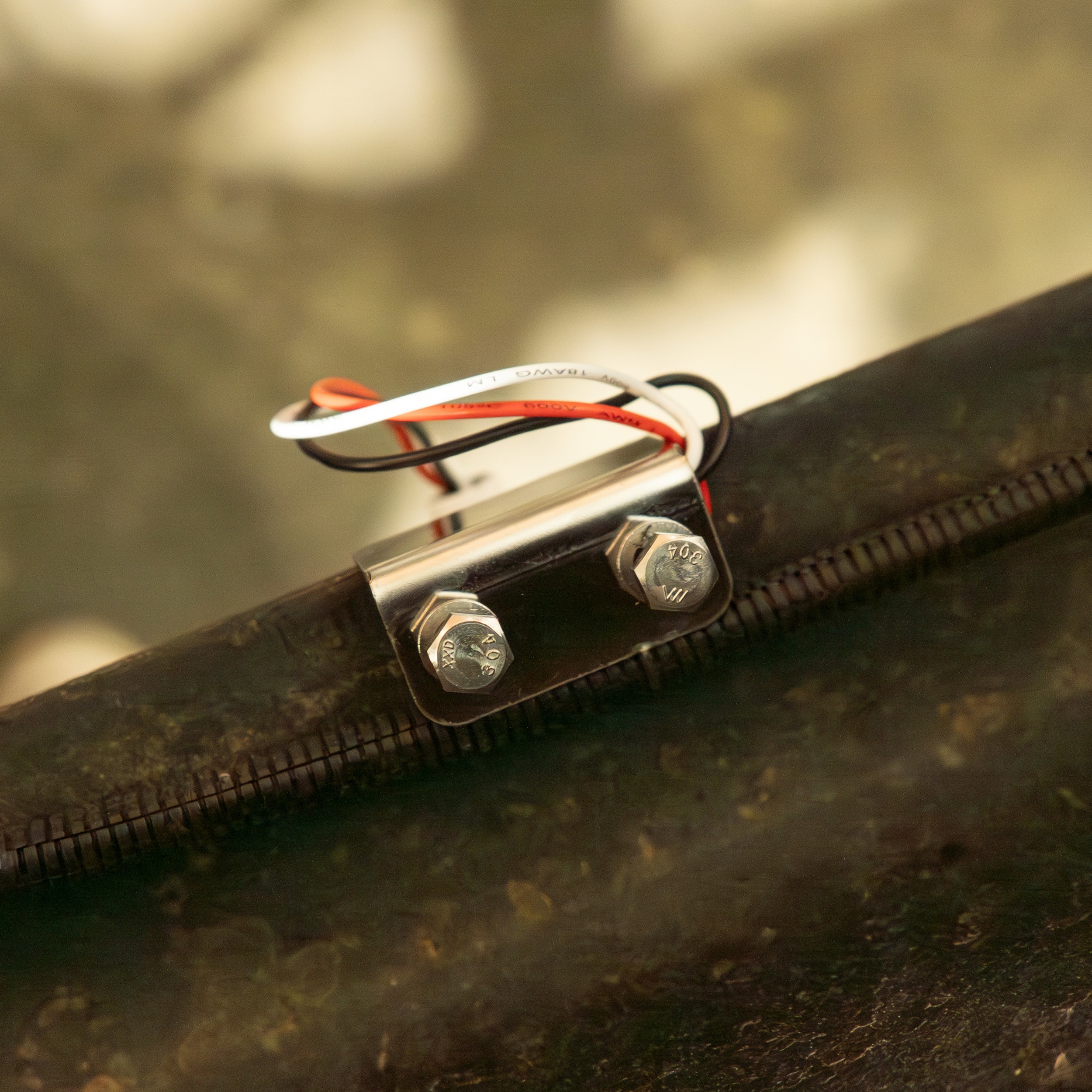

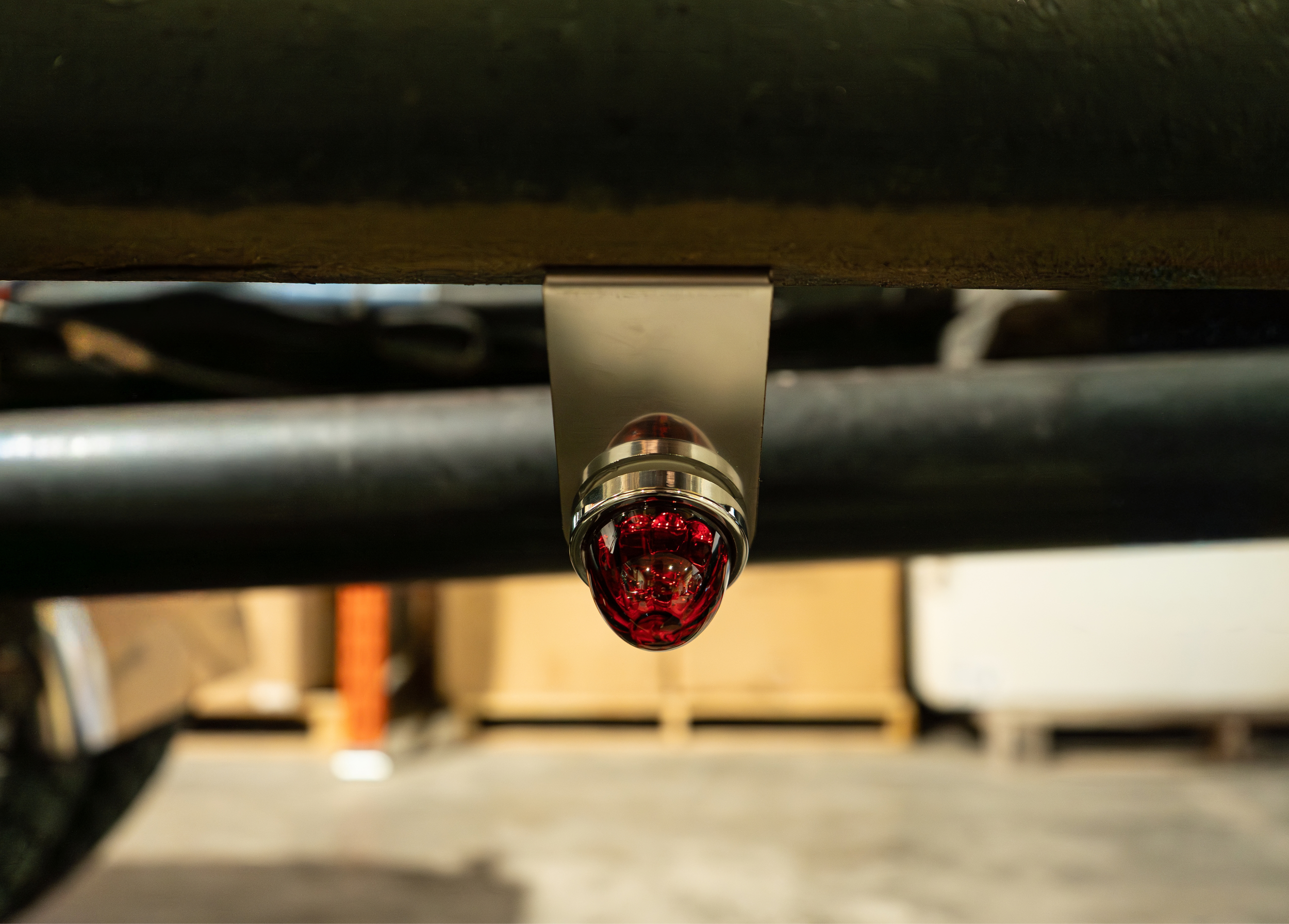

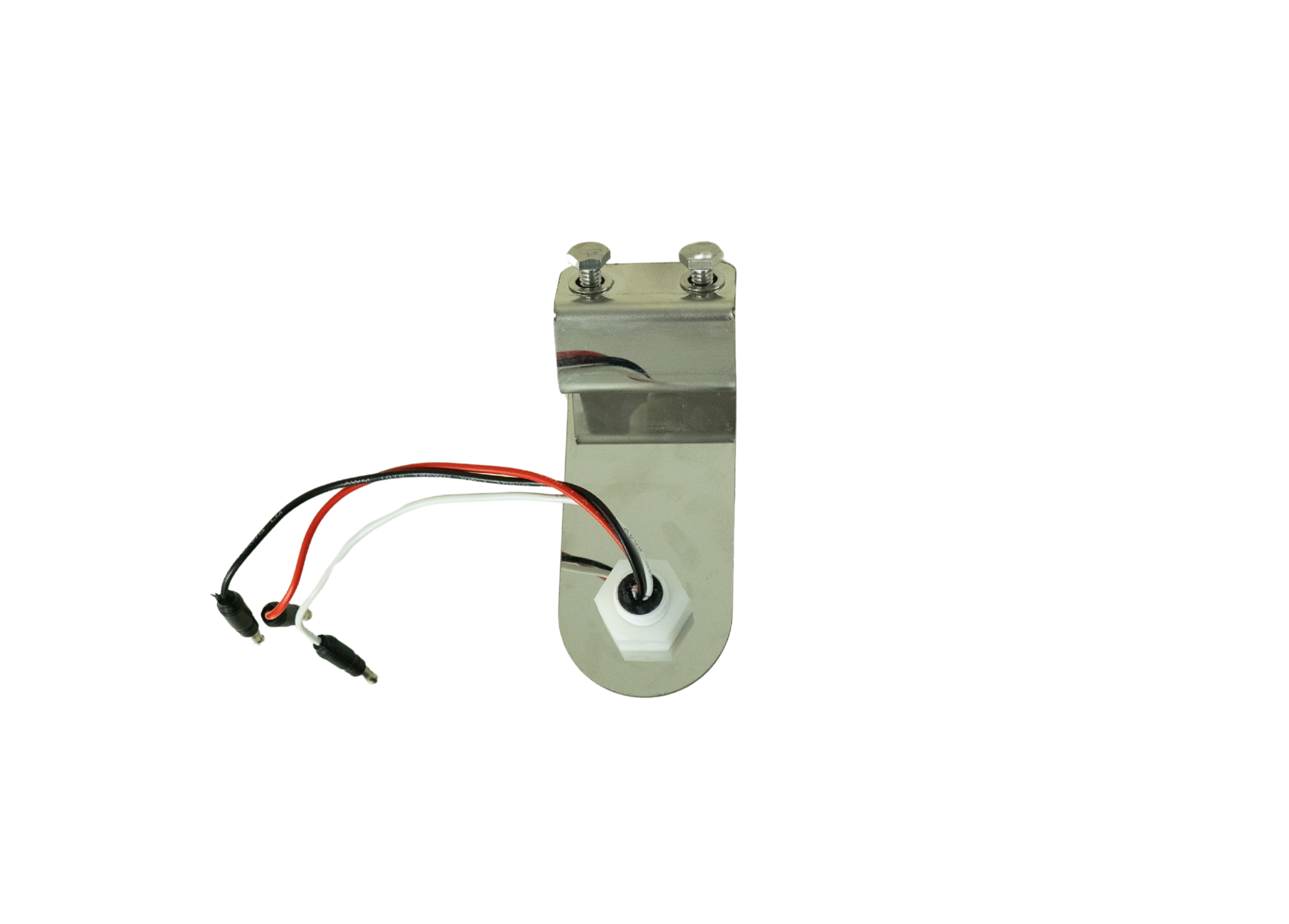

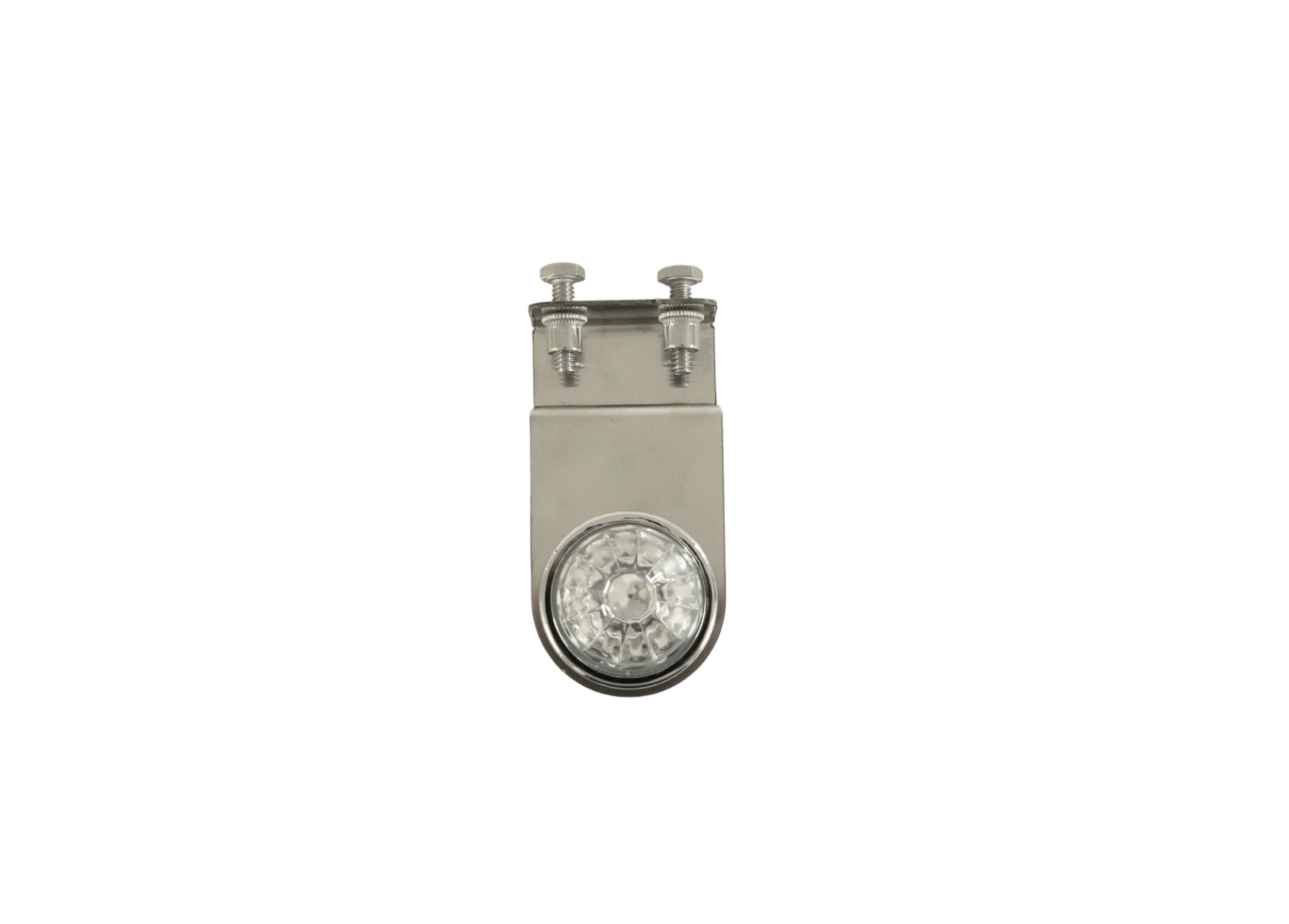

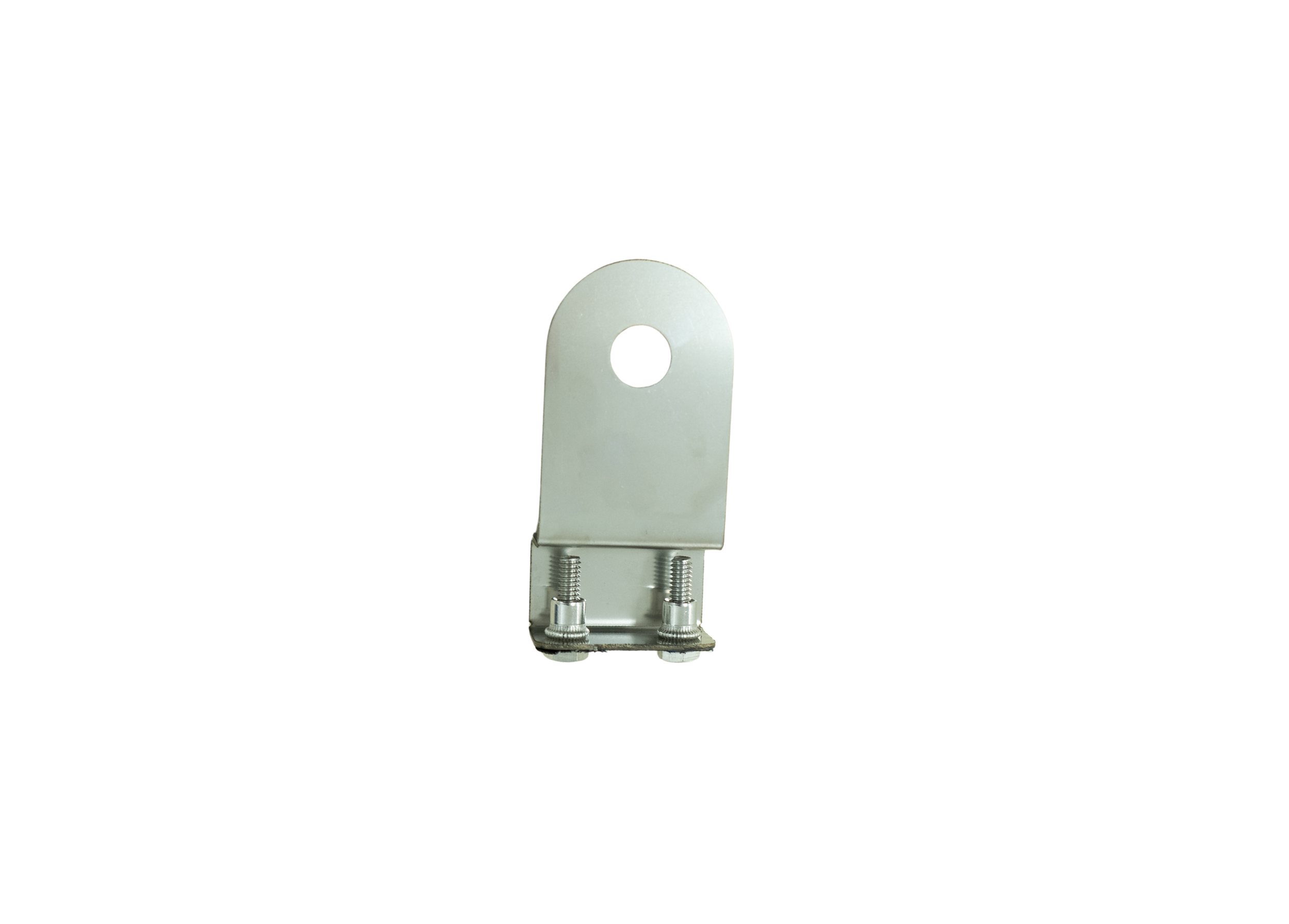

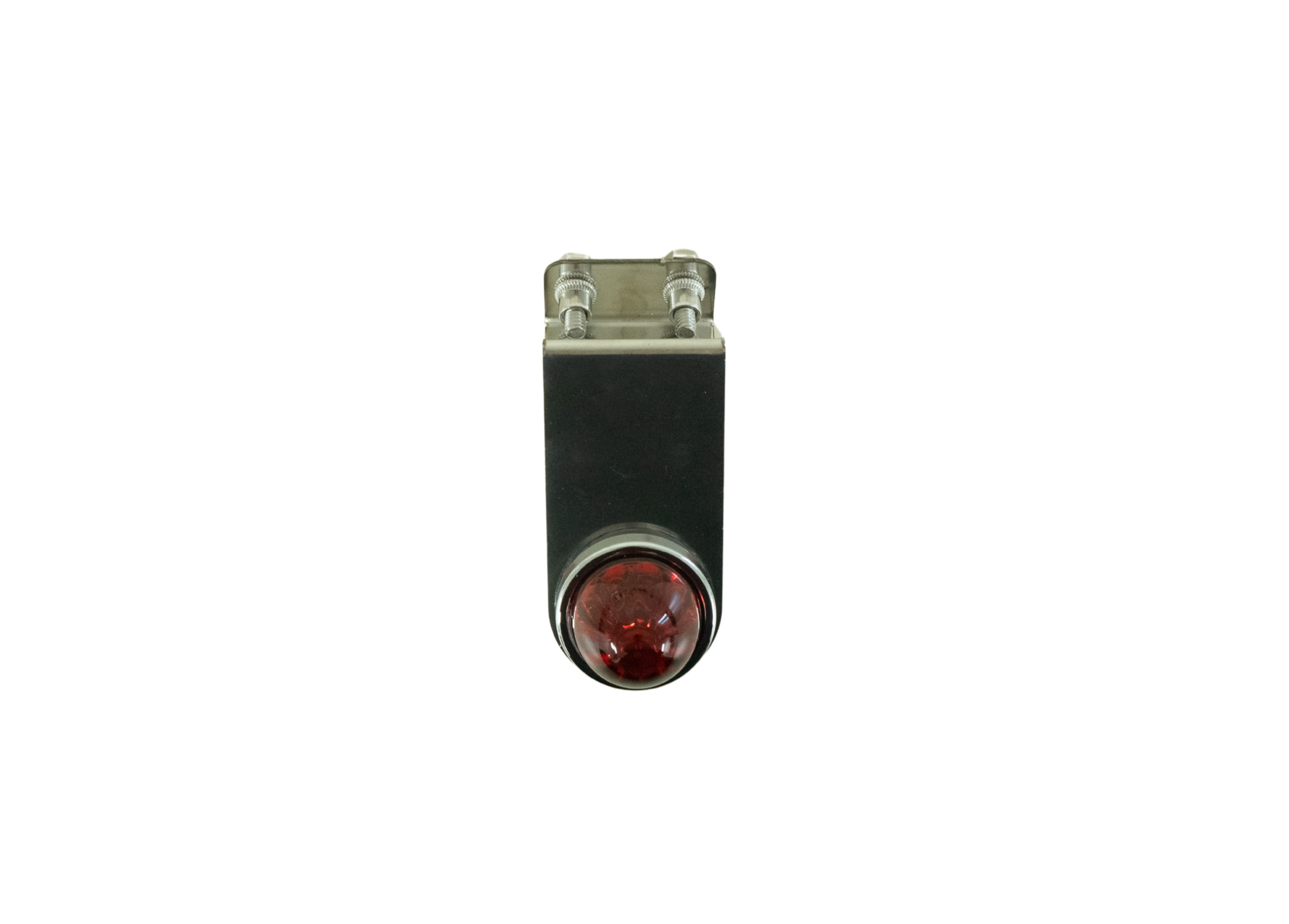

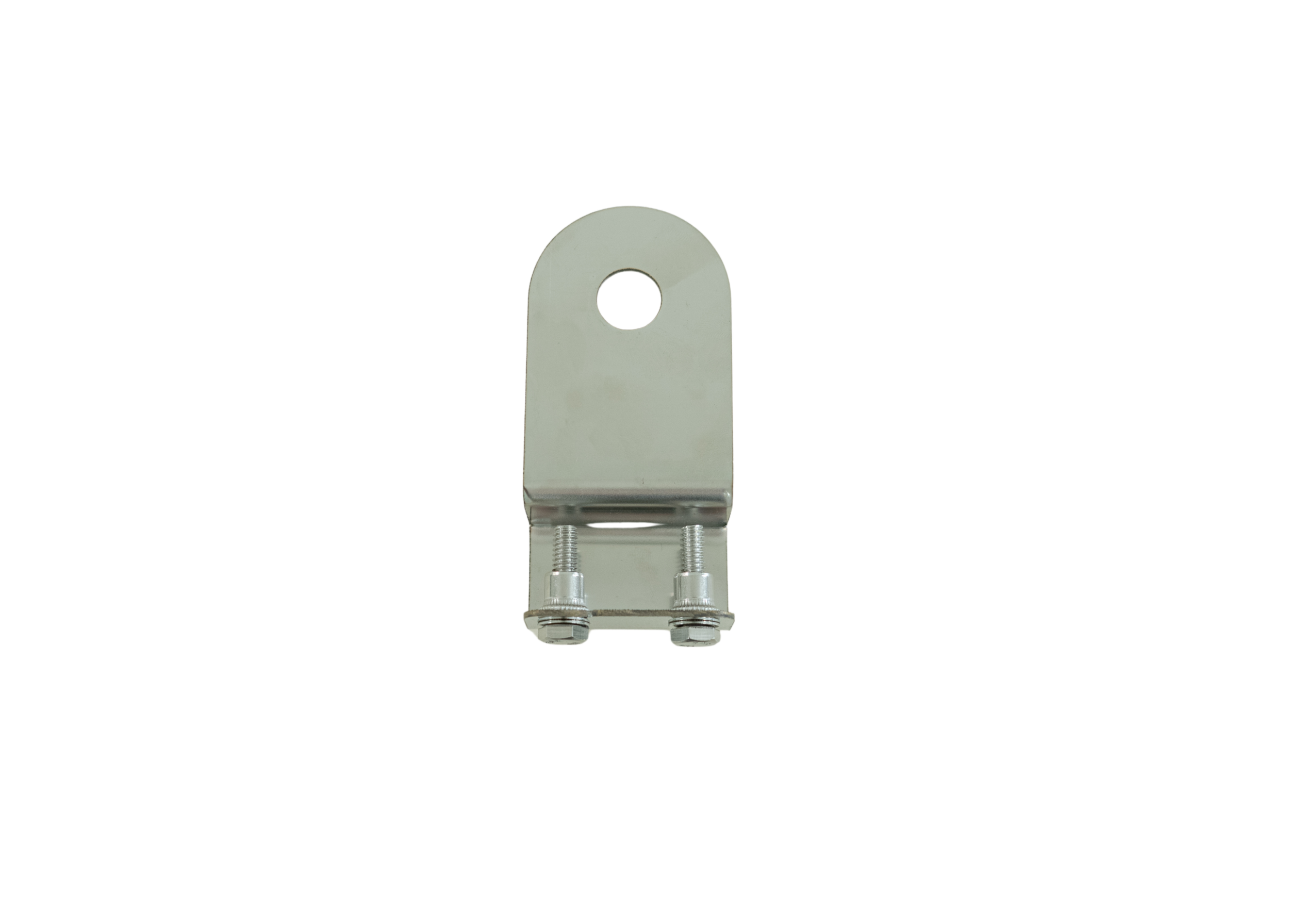

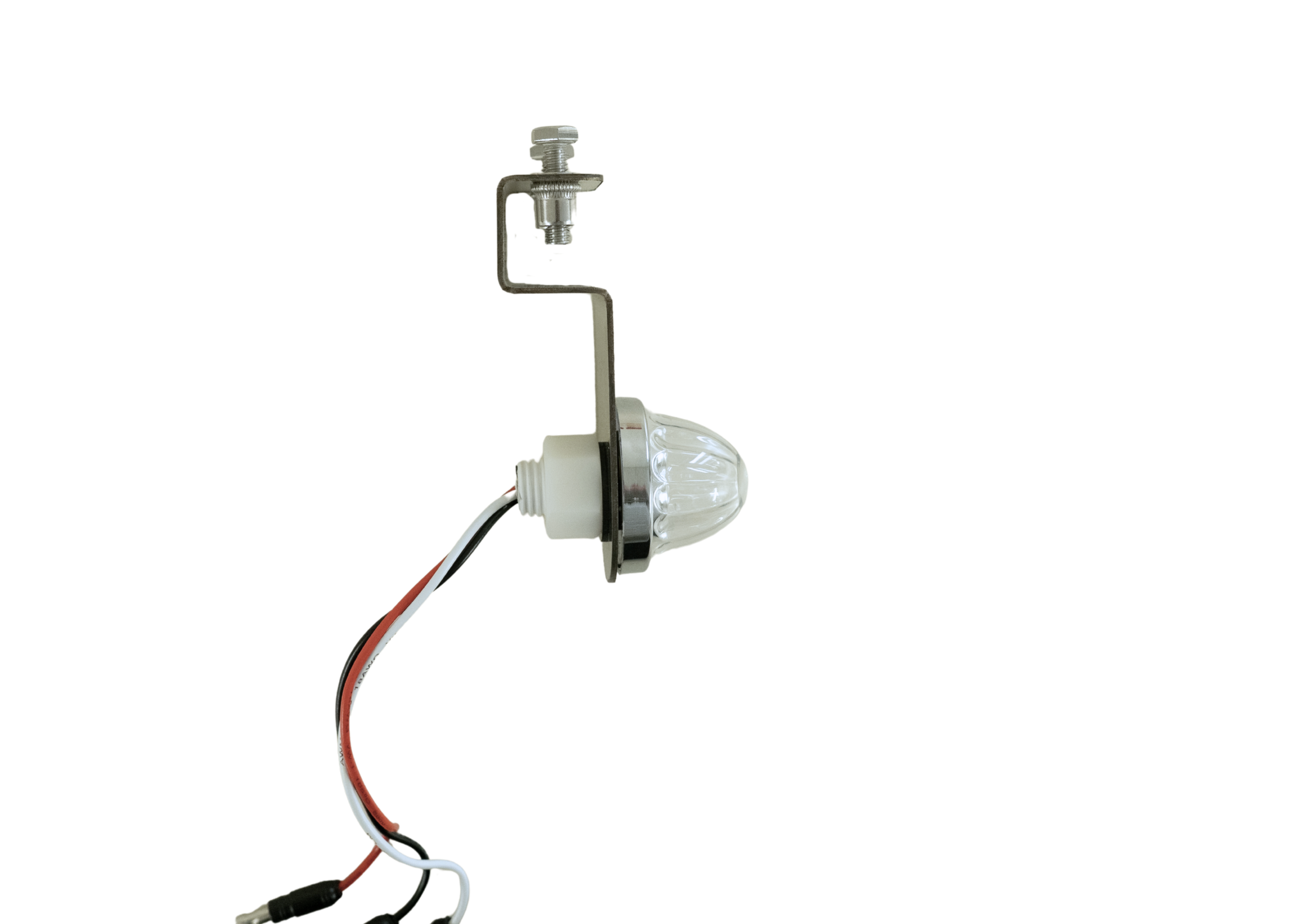

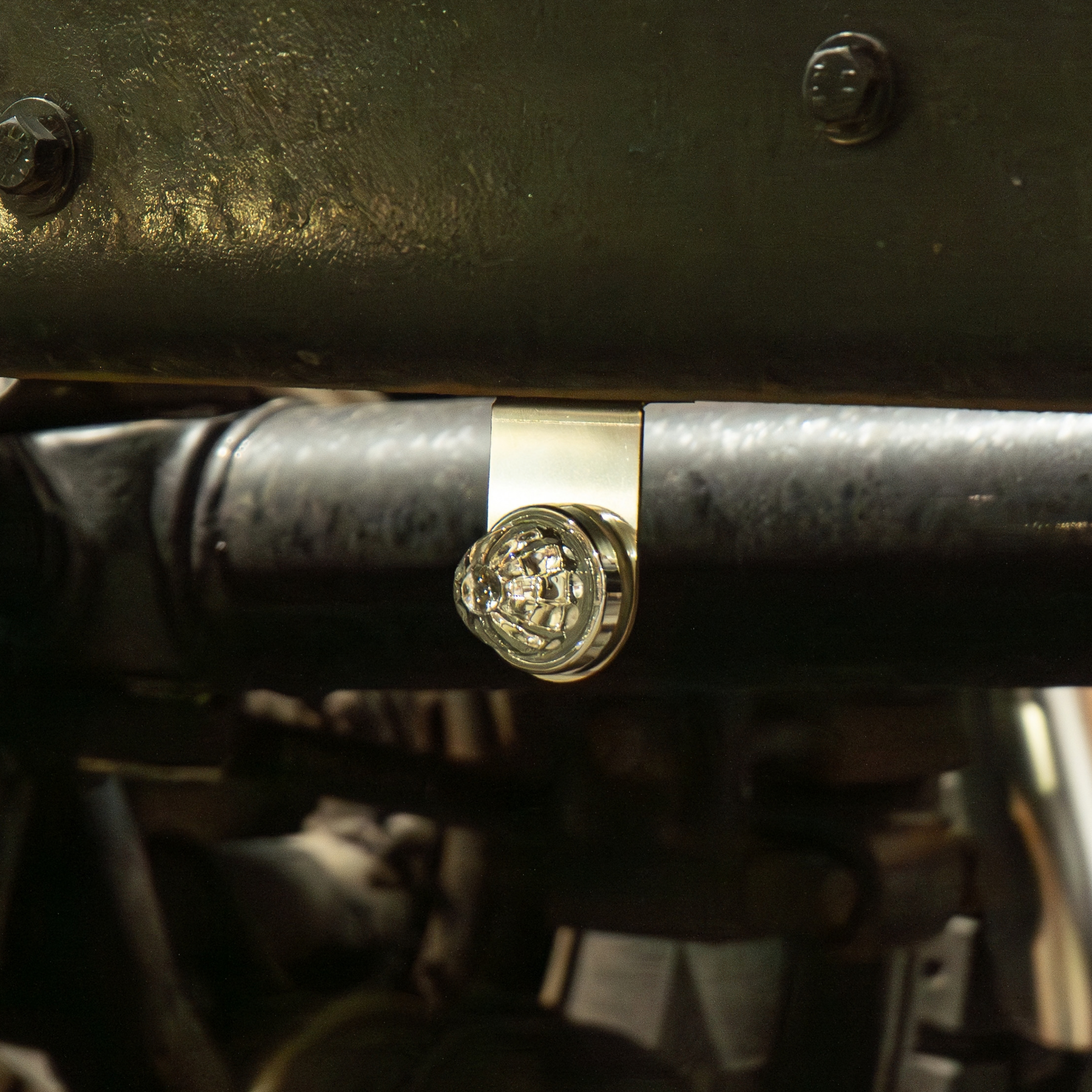

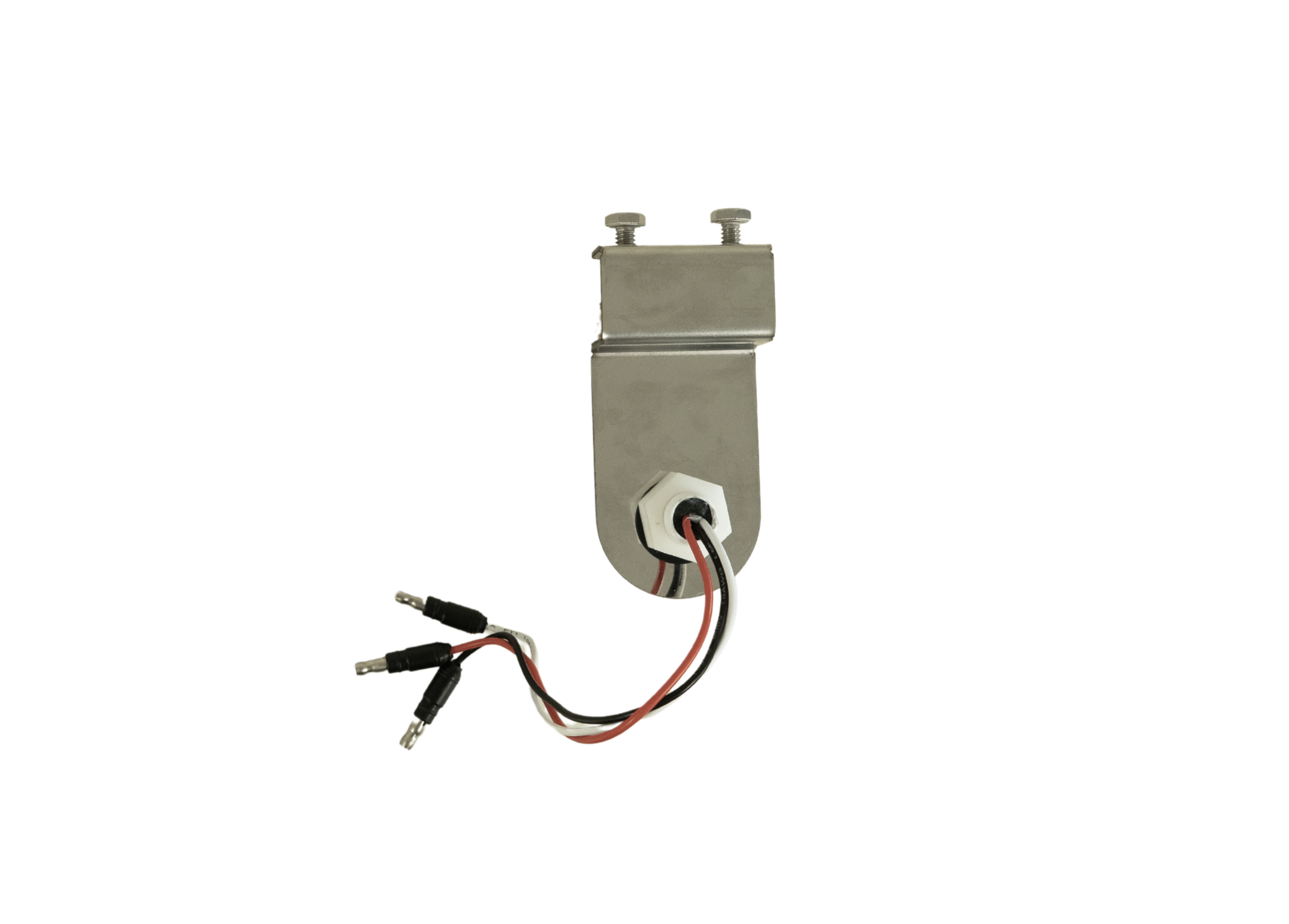

Durable 45° frame-mounted light bracket designed for mounting a stud-mount mini
watermelon light. The angled mounting surface positions the light at approximately 45° ,
making it ideal for applications where a straight or 90° mounting position isn't suitable.
Constructed from 16-gauge (.0625") stainless steel with a #4 finish for corrosion
resistance, durability, and a clean finished appearance.
Specifications
● Bracket Width: 2"
● Overall Height: 4.0625"
● 45° Angled Light Mounting Surface
● Upper Vertical Offset: 1.125"
● First Bend Location: 1.01"
● Second Bend Location: 2.03"
● 45° Bend Location: 3.08"
● Material: 16 Ga. stainless steel
● Material Thickness: 0.0625"
● Finish: #4 stainless steel finish
● Bends: Two 90° bends and one 135° bend
● Bend Radius: 0.08"
